Description
RODIN X9
Specifications

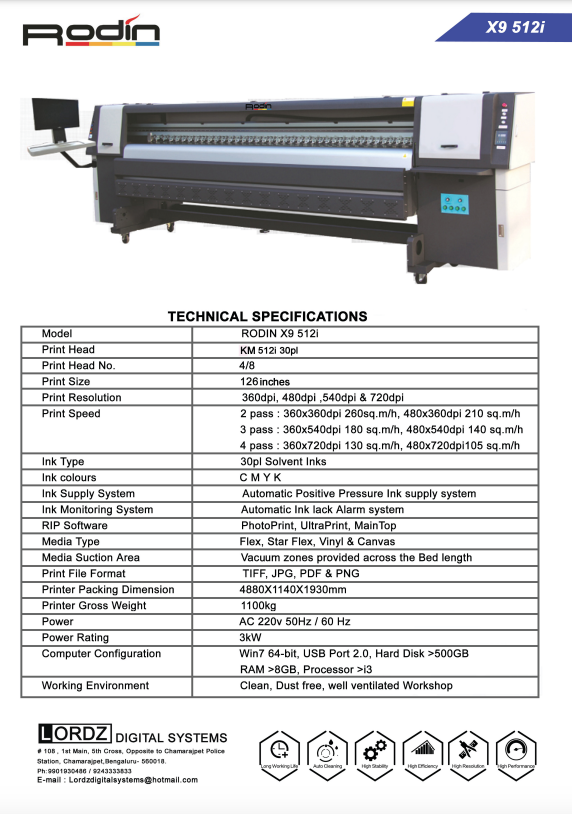

Technical Specifications – RODIN X9 512i
- Model: RODIN X9 512i
- Print Head: KM 512i 30pl
- Print Head No.: 4/8
- Print Size: 126 inches
- Print Resolution: 360dpi, 480dpi, 540dpi & 720dpi
Print Speed
| Pass Mode | 360 dpi Speed | 480 dpi Speed |
|---|---|---|
| 2 Pass | 260 sq.m/h | 210 sq.m/h |
| 3 Pass | 180 sq.m/h | 140 sq.m/h |
| 4 Pass | 130 sq.m/h | 105 sq.m/h |
Ink System
- Ink Type: 30pl Solvent Inks
- Ink Colours: CMYK
- Ink Supply System: Automatic Positive Pressure Ink Supply System
- Ink Monitoring System: Automatic Ink Leak Alarm System
Software & Media Handling
- RIP Software: PhotoPrint, UltraPrint, MainTop
- Media Type: Flex, Star Flex, Vinyl & Canvas
- Media Suction Area: Vacuum zones provided across the bed length
- Print File Format: TIFF, JPG, PDF & PNG
Dimensions & Power
- Printer Packing Dimensions: 4880 x 1140 x 1930 mm
- Printer Gross Weight: 1100 Kg
- Power Supply: AC 220V 50Hz / 60Hz
- Power Rating: 3KW
Computer Requirements
- Operating System: Windows 7 64-bit
- USB Port: 2.0
- Hard Disk: >500GB
- RAM: >8GB
- Processor: >i3
Working Environment
- Clean, dust-free, well-ventilated workshop
